PRODUCTS / LED STOP / TAIL / TURN / C93PTM

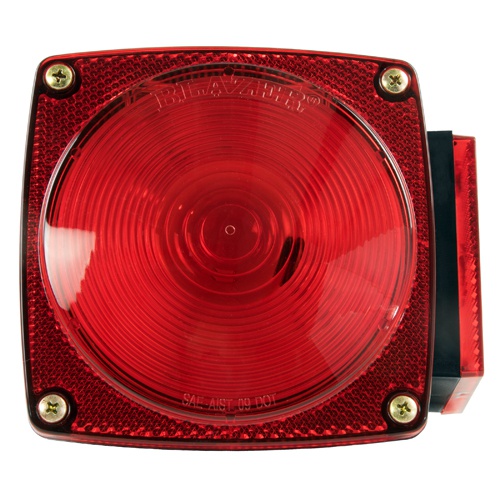

C93PTM - LED POWER1â„¢ RH Submersible Square Stop/Tail/Turn Light - Under 80 In.

PRODUCT DESCRIPTION

  • Includes light and mounting hardware
  • For trailers under 80 inches wide
  • 7 functions: Stop, tail, turn, rear clearance, rear reflex, side marker and license plate illuminator
  • Submersible - electronics are protected by a plastic casing and sealed in epoxy to resist corrosion and moisture
  • Stud mount installation
  • Works with 12 V systems
  • 0.26 Amperage draw
  • When the light is in use, it aesthetically looks more like an incandescent light but features the efficiency of the LED light
  • Allows use of both LED and incandescent lights on the trailer
  • View Installation Video
  • DOT compliant

PRODUCT DETAILS
Item #: C93PTM
Description: LED POWER1â„¢ RH Submersible Square Stop/Tail/Turn Light - Under 80 In.
Color: Red
Packing Type: Retail Blister Card
Case PK: 12

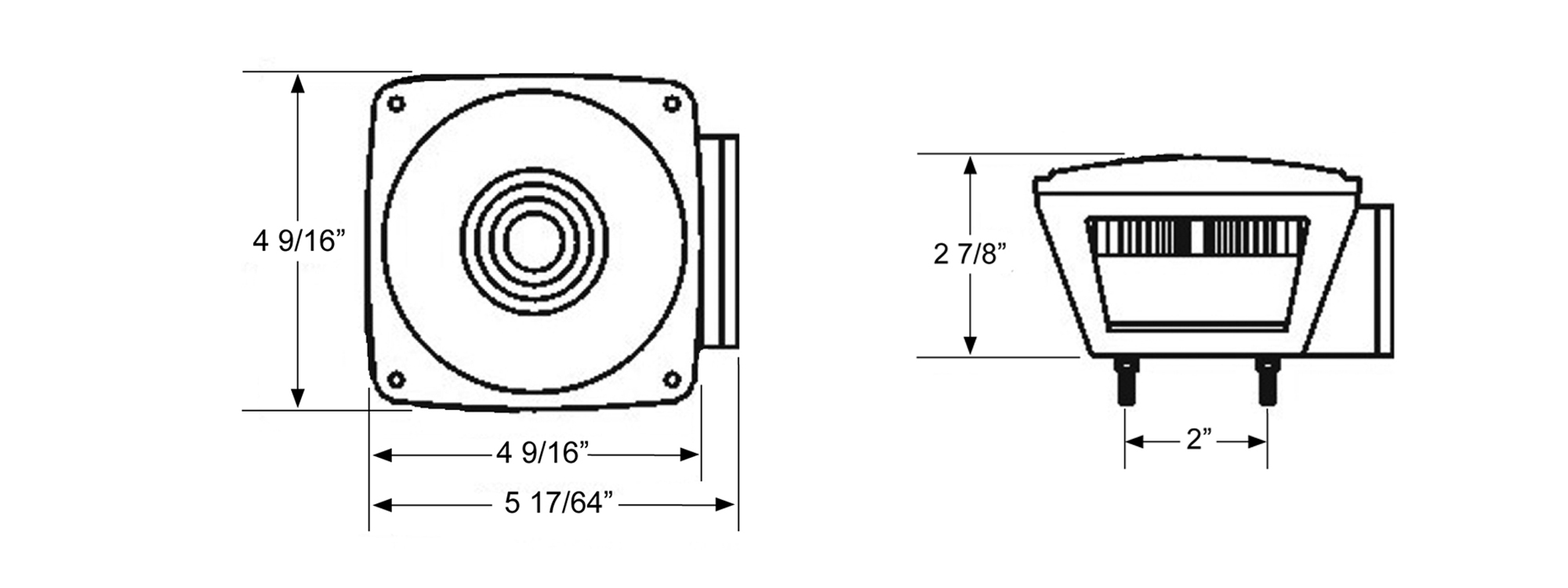

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."

OTHER RELATED PRODUCTS
C83PTMLED POWER1â„¢ LH Submersible Square Stop/Tail/Turn Light - Under 80 In.
C8393PTMLED POWER1â„¢ Submersible Square Stop/Tail/Turn Light Set - Under 80 In.
C6423PTMLED POWER1 Submersible Square Stop/Tail/Turn Light Kit - Under 80 In.
