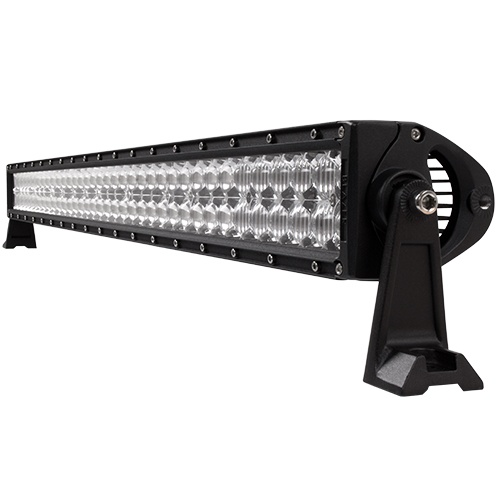

CWL536D - 36 In. LED Double Row Light Bar, Spot/Fog Beam

PRODUCT DESCRIPTION

Includes light, mounting brackets, hardware and instructions
4D optic design maximizes LUX
LED light bar has 72 individual 3 watt high-output LED lights with an equivalence of 14,400 raw / 11,112 effective lumens
Combination fog and spot beam pattern
IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
High-impact polycarbonate lens and aluminum extrusion housing
12.7 Amperage draw
Includes quick-connect plug for easy installation
Works with 12-24 V systems
6000K
NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS

Item #: CWL536D
Description: 36 In. LED Double Row Light Bar, Spot/Fog Beam
Color: White
Packing Type: Retail Box
Case PK: 4

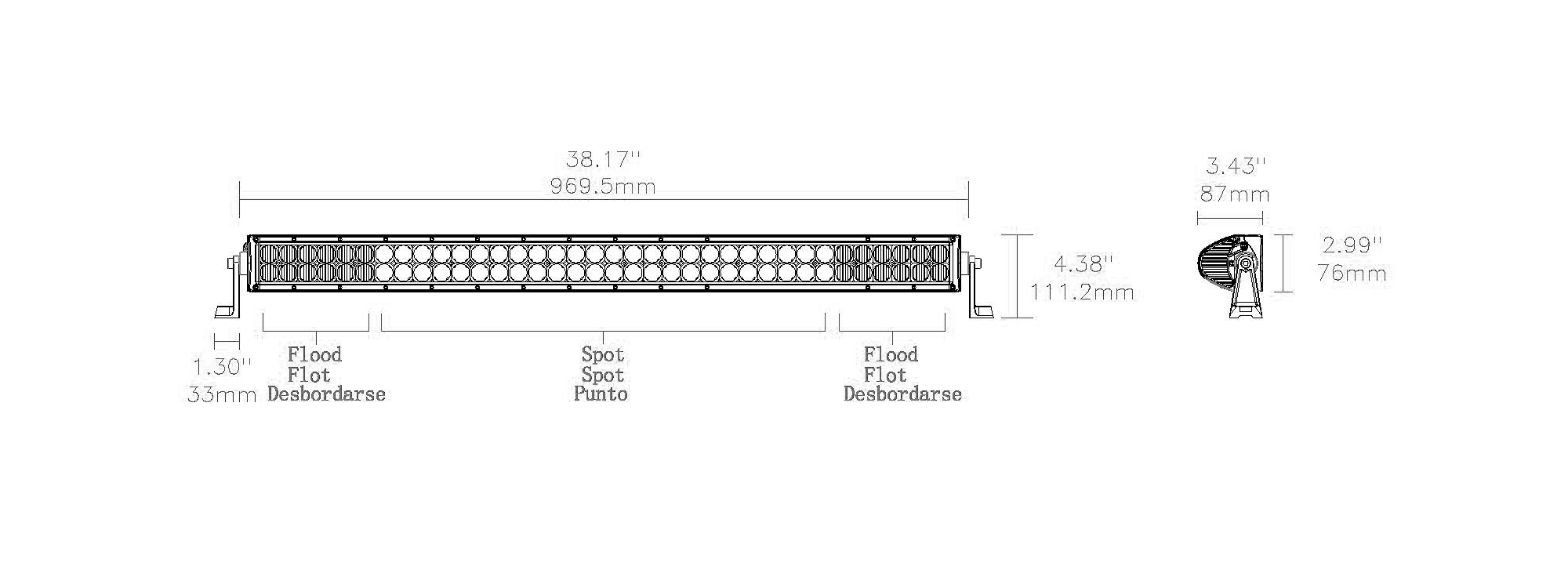

TECHNICAL DRAWINGS
