PRODUCTS / LED OFF-ROAD LIGHTING / ACCESSORIES / CWL52450

CWL52450 - 24 In. LED Double Row Light Bar Kit with Remote, Spot/Flood Beam

PRODUCT DESCRIPTION

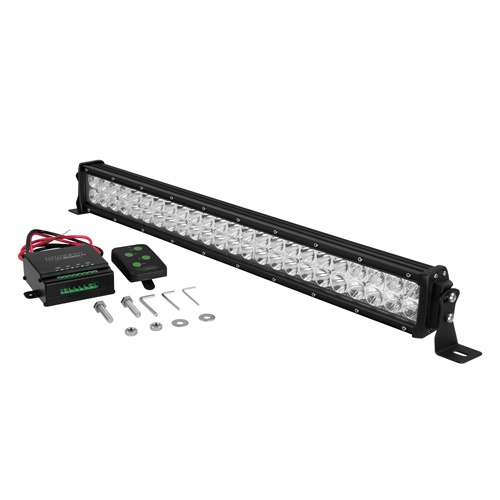

  • Includes light, mounting brackets, hardware, module, remote and instructions
  • LED light bar has 48 individual 3 watt high-output LEDs with the equivalence of 7,200 raw / 6,090 effective lumens
  • Light bar features 9 ft. lead wire
  • For environmental changes, breather valve eliminates condensation and fogging build inside the lens
  • Fast & easy installation - no drilling, no wiring, no switch, no relay
  • Ability to run 4+ lights (2 each @18 A and 2 A) with included remote/module
  • 100 ft. remote operational distance
  • 8.4 Amperage draw/Works with 12-24 V systems
  • IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
  • High-impact polycarbonate lens and aluminum extrusion housing
  • NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS
Item #: CWL52450
Description: 24 In. LED Double Row Light Bar Kit with Remote, Spot/Flood Beam
Color: Black
Packing Type: Retail Box
Case PK: 2

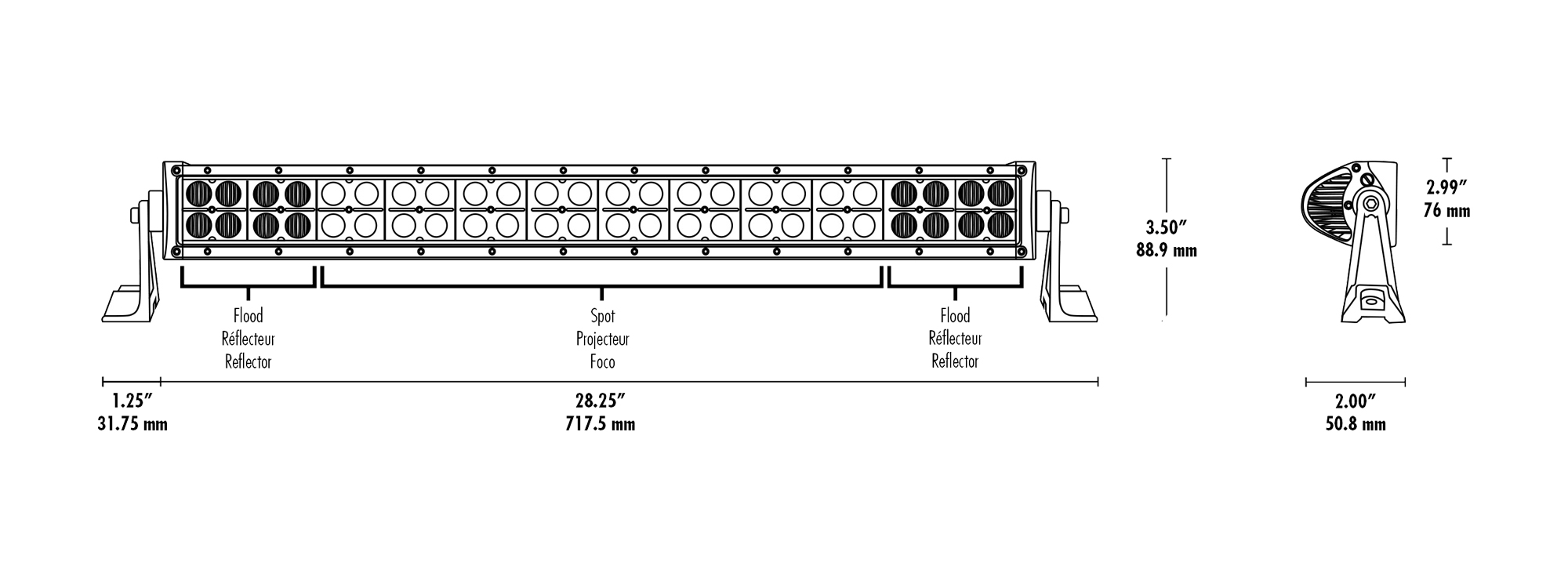

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."
