PRODUCTS / LED OFF-ROAD LIGHTING / ACCESSORIES / CWL51222

CWL51222 - 2 In. LED Cube Kit with Remote

PRODUCT DESCRIPTION

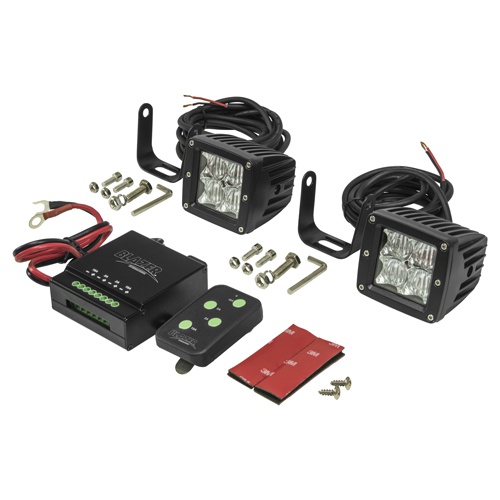

  • Includes 2 lights, mounting brackets, hardware, module, remote and instructions
  • LED light cubes have 4 individual 5 watt high-output LEDs with the equivalence of 1,800 raw / 890 effective lumens each
  • Lights feature 9 ft. lead wires
  • For environmental changes, breather valve eliminates condensation and fogging build inside the lens
  • Fast & easy installation - no drilling, no wiring, no switch, no relay
  • Ability to run 4+ lights (2 each @ 18 A and 2 A) with included remote control
  • 100 ft. remote operational distance
  • 1.1 Amperage draw per light/Works with 12 - 24 V systems
  • IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
  • High-impact polycarbonate lens and die cast aluminum housing
  • NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS
Item #: CWL51222
Description: 2 In. LED Cube Kit with Remote
Color: Black
Packing Type: Retail Box
Case PK: 12

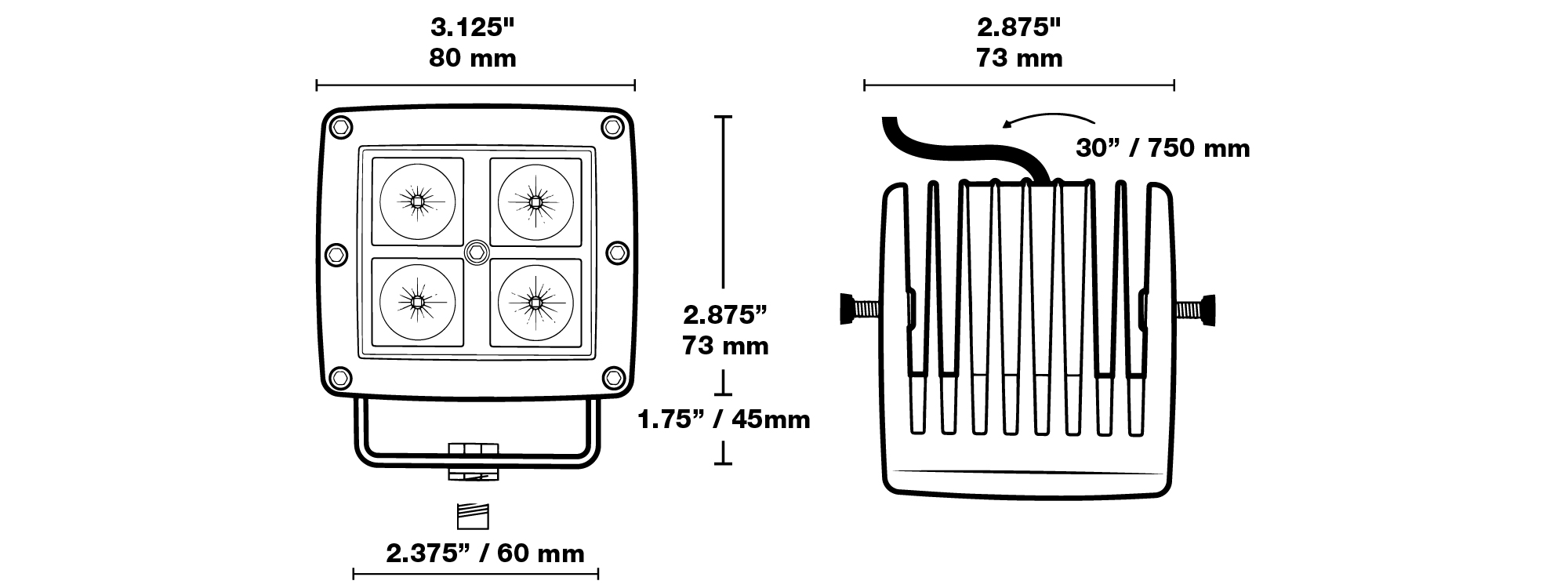

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."
