PRODUCTS / LED OFF-ROAD LIGHTING / ACCESSORIES / C3073KFM

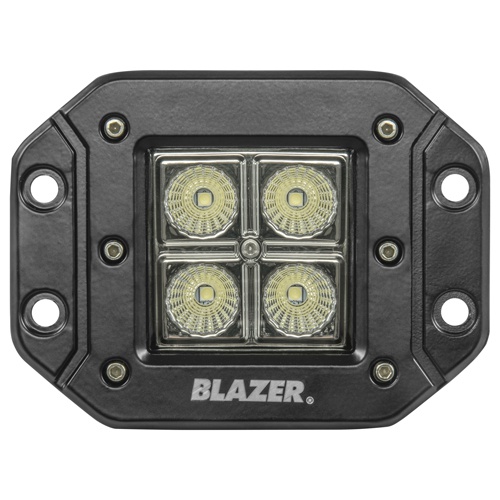

C3073KFM - 2 In. LED Flush Mount Cube, Flood Beam

PRODUCT DESCRIPTION

  • Includes light, mounting bracket, hardware and instructions
  • Flush mount design provides a protected, low-profile look and its compact size and shape allow light to fit almost anywhere
  • LED light has 4 individual 3 watt high-output LEDs with an equivalence of 750 raw / 600 effective lumens
  • Flood beam pattern
  • IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
  • High-impact polycarbonate lens and die cast aluminum housing
  • 1.34 Amperage draw
  • Light includes quick connecting plug
  • Works with 12-24 V systems
  • 6500K
  • NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS
Item #: C3073KFM
Description: 2 In. LED Flush Mount Cube, Flood Beam
Color: Clear Lens/Black Housing
Packing Type: Retail Box
Case PK: 12

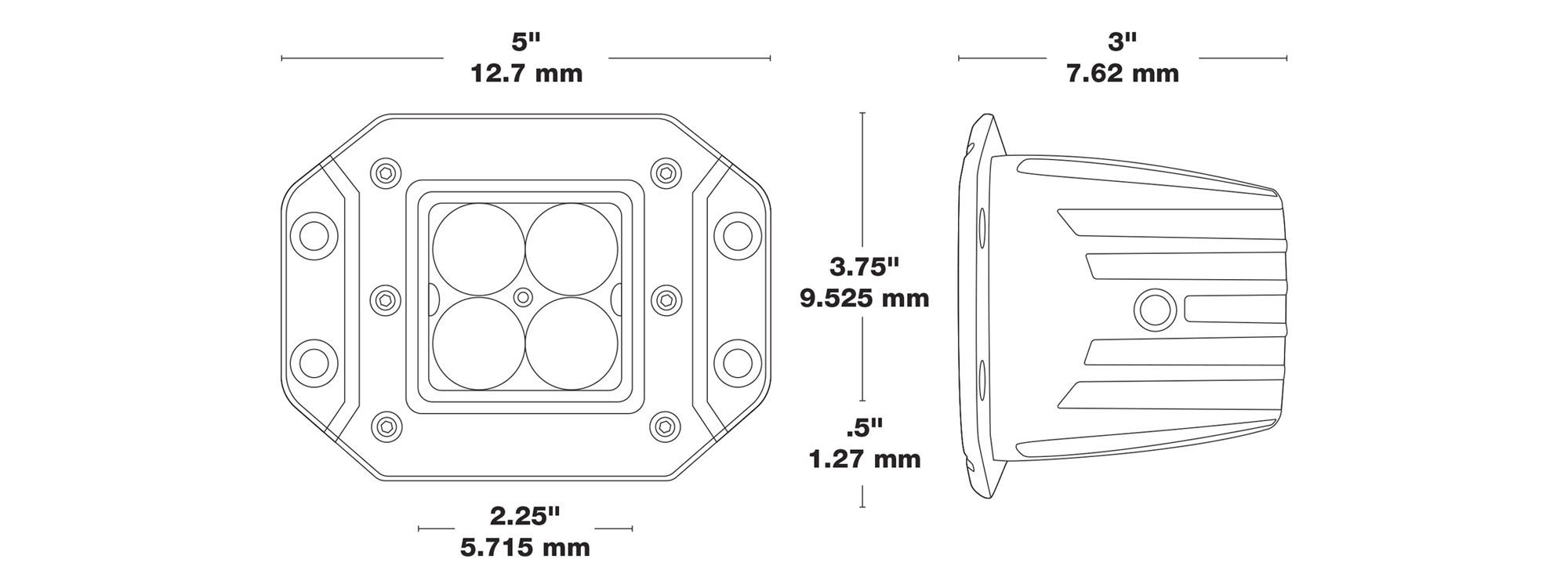

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."
