PRODUCTS / LED OFF-ROAD LIGHTING / ACCESSORIES / C3071K

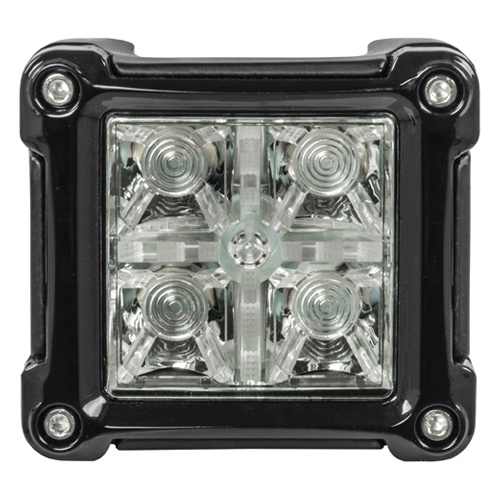

C3071K - 2 In. LED Cube with Daytime Running Light, Spot Beam

PRODUCT DESCRIPTION

  • Includes light, mounting bracket, hardware and instructions
  • LED light has 4 individual 5 watt high-output LEDs with an equivalence of 2,000 raw / 1,530 effective lumens
  • Spot beam pattern with daytime running light function
  • IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
  • Quick-connecting system (male and female plugs) allow plug & play installation, vibration resistant & weather proof connection from light to light or to the wiring harness
  • 1.5 Amperage draw
  • Works with 12 - 24 V systems
  • Vent finds dissipate heat quickly
  • High-impact polycarbonate lens and die cast aluminum housing
  • 6500K
  • NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS
Item #: C3071K
Description: 2 In. LED Cube with Daytime Running Light, Spot Beam
Color: Clear Lens/Black Housing
Packing Type: Retail Box
Case PK: 8

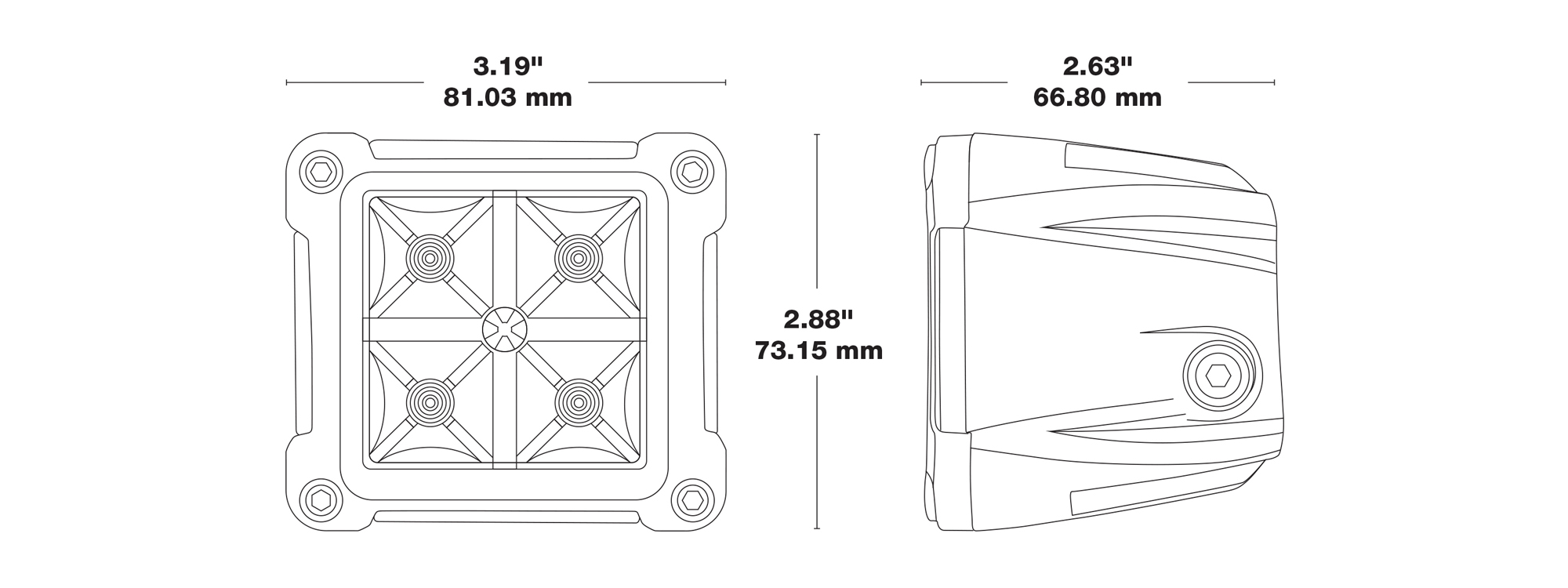

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."
