PRODUCTS / LED OFF-ROAD LIGHTING / ACCESSORIES / C3022K

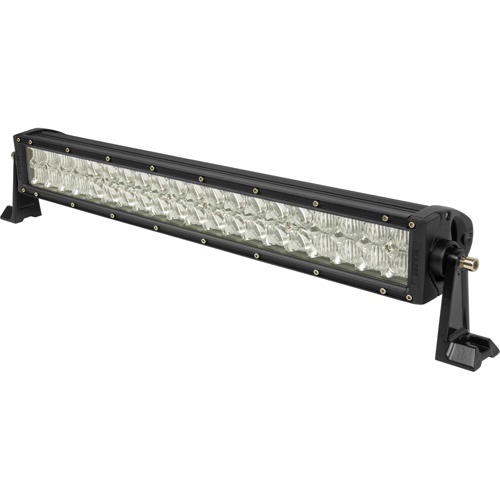

C3022K - 22 In. LED Double Row Light Bar, Spot/Fog Beam

PRODUCT DESCRIPTION

  • Includes light, mounting brackets, hardware and instructions
  • LED light bar has 40 individual 3 watt high-output LEDs with an equivalence of 9,200 raw / 5,700 effective lumens
  • 4D optic design maximizes LUX
  • Combination fog and spot beam pattern
  • IP67 rating ensures product is impermeable to dust and to water immersion between 5 to 40 In. of water and with the use of high pressure jets for cleaning
  • High-impact polycarbonate lens and aluminum extrusion housing
  • 8.4 Amperage draw
  • Includes quick-connect plug for easy installation
  • Works with 12-24 V systems
  • 6000K
  • NOTE: The dimension shown is a rounded measurement of the lens in the light housing

PRODUCT DETAILS
Item #: C3022K
Description: 22 In. LED Double Row Light Bar, Spot/Fog Beam
Color: Clear Lens/Black Housing
Packing Type: Retail Box
Case PK: 4

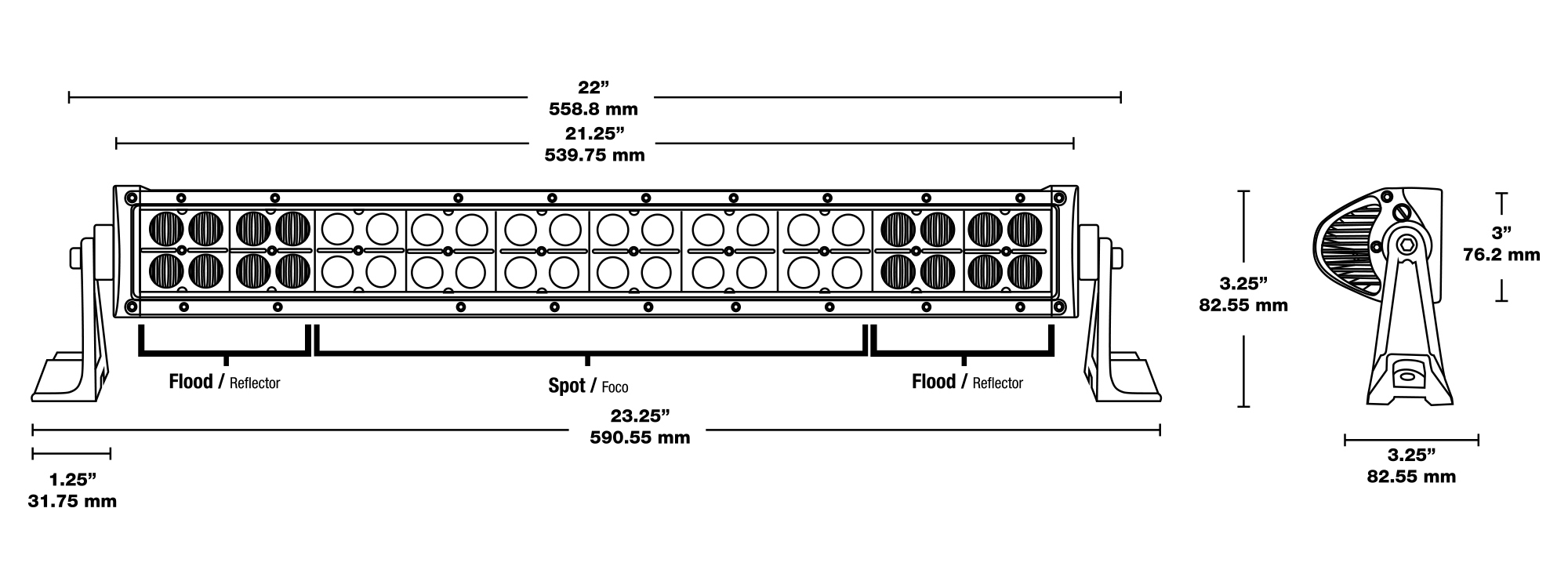

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Right-click and select "save Picture/Image As..."
